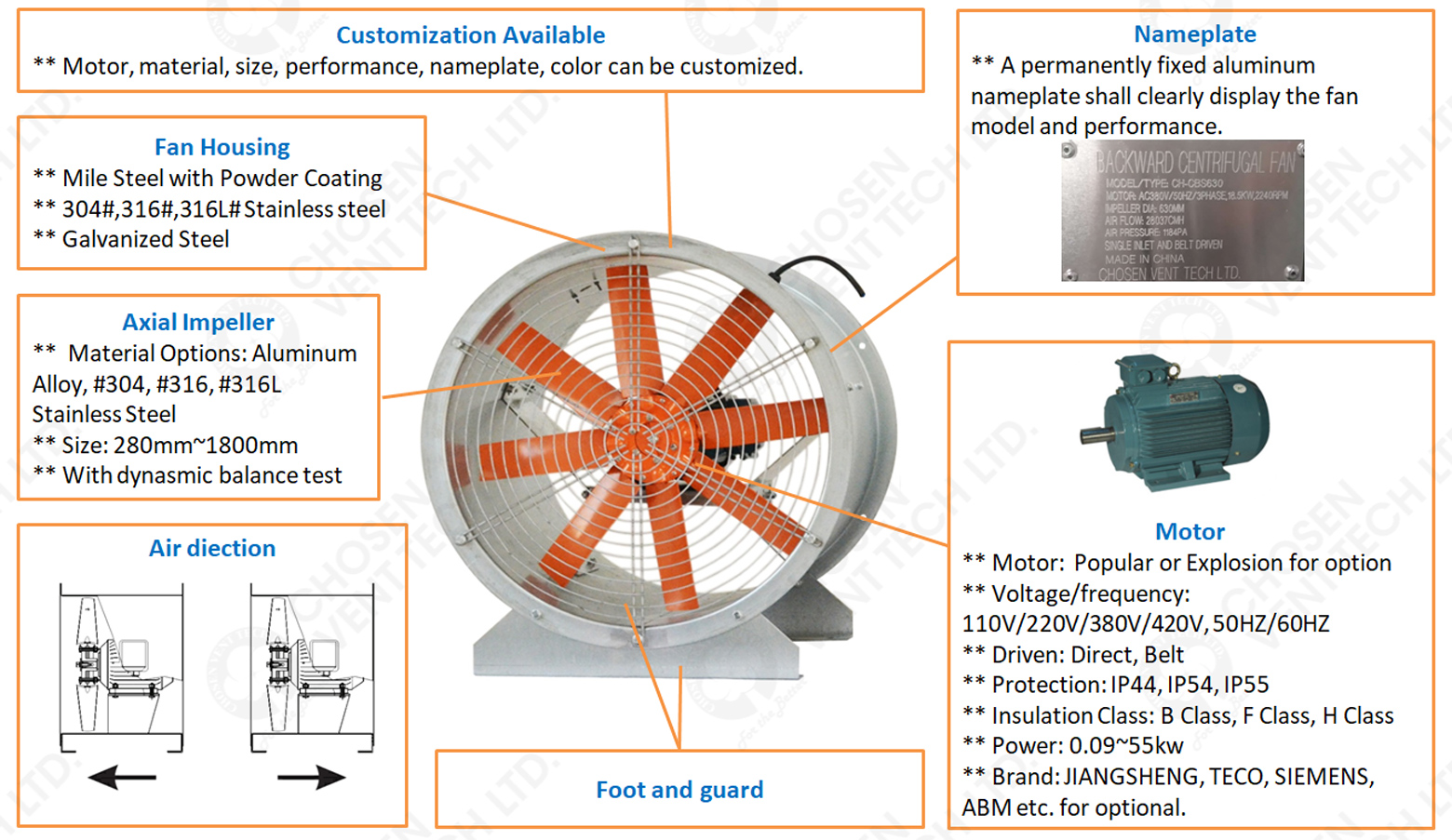

Belt Driven Axial Fan

CHOSEN’S Axial fan with high performance is a good choice for ventilation system (supply or exhaust). Customization is our advantage. Welcomed to send us your requirements! We will help you choose suitable axial fan.

Application

· For the Ventilation (supply or exhaust) System of Building, Firefighting, air circulation.
· For the equipments of filtration & drying, food processing, painting room, medical processing.

Advantages

· Compact structure.
· Various material for different usage condition & situation: Mile steel, Stainless Steel #304/#316/#316L, Aluminum Alloy.
· Transport gas temperature at -20℃ ~ 100℃.
· With airway test, air Performance Parameter is truth and reliable.
· With 400 tons die casting Aluminum alloy impeller
· High static efficiency.
· With CE CETIFICATE.

Parameters

Model	Speed	Power	Air Flow	Total Pressure	Noise
Model	rpm	Kw	m³/h	Pa	dB
AXF315-C	2800	0.25	2200	200	73
			1500	185	73
			2800	170	74
		0.37	2800	220	75
			3200	200	76
			3900	190	78
		0.55	3200	260	76
			3600	240	78
			3960	230	78
	1440	0.09	1450	60	58
			1800	58	60
			2000	55	61
AXF355-C	2800	0.55	3500	280	74
			4000	270	74
			4600	250	75
		0.75	4000	290	76
			4580	275	76
			5200	265	79
		1.1	4580	320	77
			5150	300	79
			5660	290	79
	1400	0.12	2075	75	59
			2570	70	61
			2860	69	62
		0.18	2920	72	60
			3100	70	61
			5000	68	62
AXF400-C	2800	1.5	5500	390	77
			6100	370	77
			6800	330	80
		2.2	5800	410	78
			6500	400	80
			7300	390	80
	1400	0.25	3100	95	63
			3700	90	64
			4300	88	66
		0.37	3600	100	63
			4000	96	64
			4800	90	65
AXF500-C	2850	4	7500	680	78
			8800	560	78
			9500	430	79
		5.5	8500	600	80
			9600	560	81
			10300	500	81
		7.5	9500	620	82
			10600	610	83
			12000	600	83
	1420	0.55	6900	150	68
			7200	130	69
			8500	110	71
		0.75	7200	160	70
			8500	140	73
			9300	120	75
		1.1	8300	180	72
			9000	160	74
			9600	150	75
AXF560-C	2900	4	8700	550	84
			10000	490	83
			12600	350	82
		5.5	10000	590	83
			11000	550	83
			13000	480	83
		7.5	11000	700	86
			13000	600	85
			14800	520	85
		1.1	12000	800	87
			14000	680	87
			16000	600	87
	1450	0.75	9000	200	71
			10000	180	69
			11000	160	71
		1.1	9300	205	73
			10500	185	73
			11500	165	73
		1.5	11000	210	74
			12500	190	75
			13900	170	76
AXF630-C	1450	1.1	12600	220	74
			14500	200	75
			16000	180	76
		1.5	13000	245	76
			15000	225	78
			16000	175	78
		2.2	13500	265	76
			15500	245	78
			17000	195	79
	960	0.75	10000	140	65
			11500	120	66
			12600	100	67
AXF710-C	1450	1.5	14500	250	76
			16500	220	77
			18000	200	78
		2.2	16500	300	77
			18000	260	78
			20000	230	78
		3	18000	370	79
			20000	330	78
			21000	290	80
		4	20000	400	80
			21500	370	81
			23000	330	81
	960	0.75	12600	160	68
			14500	130	70
			16200	100	70
		1.1	16500	140	71
			18000	130	71
			19000	120	71
AXF800-C	1450	4	23000	330	79
			25000	300	80
			28000	290	80
		5.5	25000	400	84
			27200	360	84
			30000	330	84
		7.5	28000	450	85
			31000	430	86
			33000	400	86
	960	1.5	18000	200	73
			20000	180	73
			21000	150	73
		2.2	22000	200	74
			24000	190	74
			26000	180	74
		3	24000	210	75
			26000	200	75
			28000	190	75
AXF900-C	1450	5.5	28000	390	83
			34000	370	84
			35000	350	84
		7.5	31000	440	84
			37000	410	85
			39000	380	85
		11	36000	515	86
			39000	470	86
			43000	380	86
	960	2.2	21000	190	73
			25000	180	73
			26400	160	73
		3	23800	225	74
			26300	225	74
			28600	167	74
		4	31000	230	75
			32500	210	75
			34400	195	75
AXF1000-C	1450	11	41666	470	86
			49200	440	87
			51900	420	87
		15	46200	520	86
			54680	487	87
			57700	450	87
		18.5	52000	605	87
			57500	560	88
			62400	450	88
		22	64700	670	88
			67500	615	89
			71400	550	89
	970	4	31000	240	76
			37000	220	76
			38600	200	78
		5.5	35000	270	77
			38000	250	78
			42000	225	78
		7.5	44000	330	78
			46100	310	79
			48700	280	79
AXF1120-C	1400	18.5	53000	590	88
			59000	550	89
			65000	500	89
		22	59000	690	89
			67000	600	89
			71000	430	90
		30	69000	1100	89
			79000	965	90
			84200	690	91
	960	5.5	36000	330	81
			40000	300	83
			43000	270	83
		7.5	40000	370	82
			46000	330	83
			52000	300	84
		11	50000	460	84
			56000	420	85
			63000	380	85
	720	4	35000	240	76
			38000	220	77
			42000	180	78
		5.5	38000	300	77
			42000	260	78
			48000	220	78
